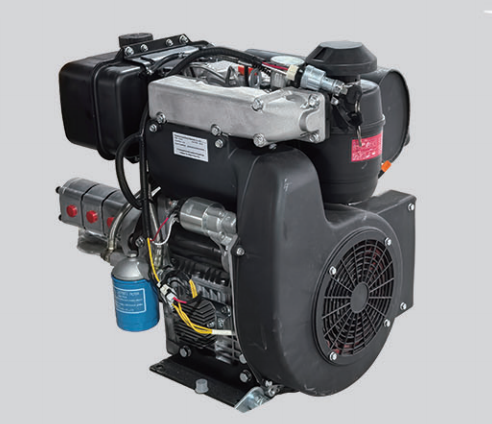

| Model | R490 | Engine Brand | Electric / Koop / Rato / Briggs & Stratton |
| Rated Power | 8 kW, 72V, 200Ah / 15 kW / 19.2 kW / 17 kW | Cylinder | 2 |
| Intake Type | Naturally Aspirated | Emission Standard | Euro 5 / EPA |
| Rated Load | 250 kg | Maximum Load | 350 kg |
| Maximum Digging Force | 4.5 kN | Hydraulic System Pressure | 17 - 21 bar |

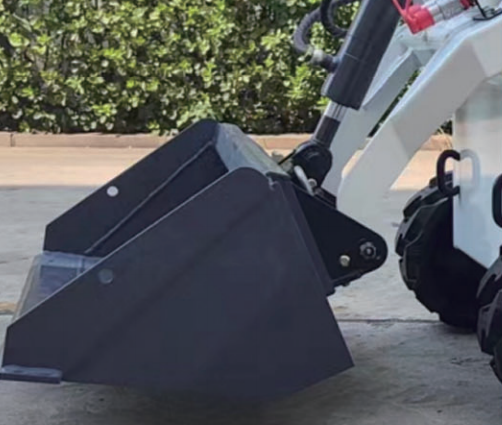

| Fuel Tank Capacity | 10 L | Bucket Capacity | 0.12 m³ |
| Travel Speed | 0 - 6 km/h | Work Cycle Time | 9 s |
| Certification | CE / EPA / EURO5 | Overall Height | 1300 mm |
| Width | 1100 mm | Total Length with Standard Bucket | 2700 mm |
| Total Length without Bucket | 2300 mm | Bucket Width | 1050 mm |
| Rear Overhang Length | 500 mm | Maximum Operating Height | 2530 mm |
| Height to Bucket Pin | 1933 mm | Maximum Bucket Height when Level | 1740 mm |
| Dumping Height | 1400 mm | Dumping Reach | 595 mm |
| Track Length on Ground | 1350 mm | Ground Clearance | 230 mm |
| Bucket Roll Angle at Ground | 27° | Bucket Roll Angle at Maximum Height | 114° |
| Operating Weight | 1200 kg | Tire Size | 180 x 72 x 45 mm |
Skid steer

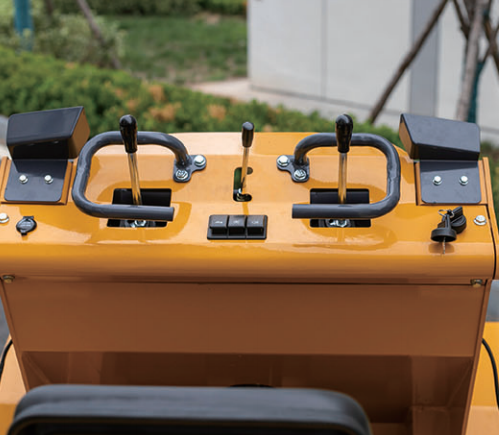

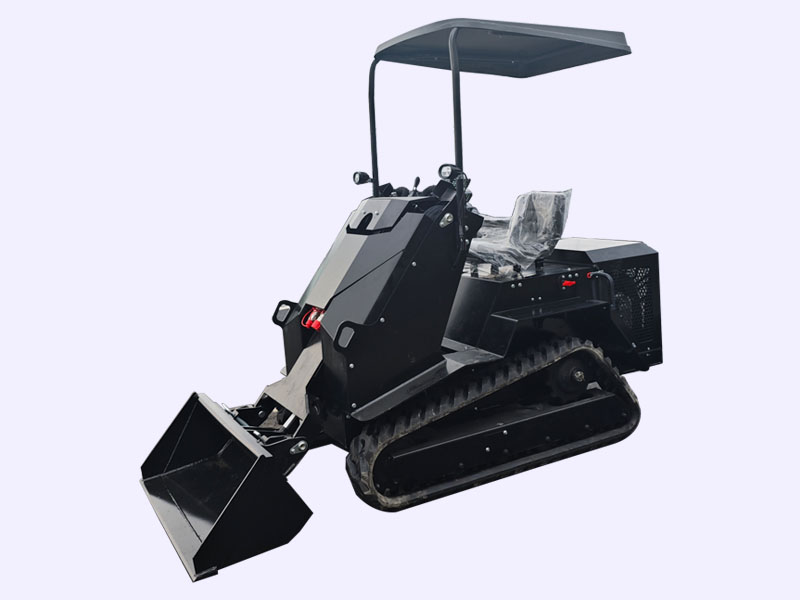

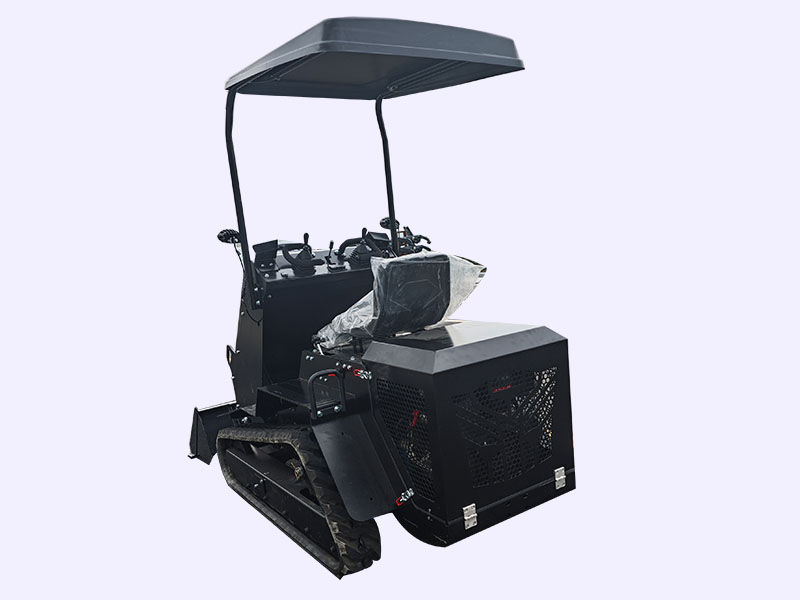

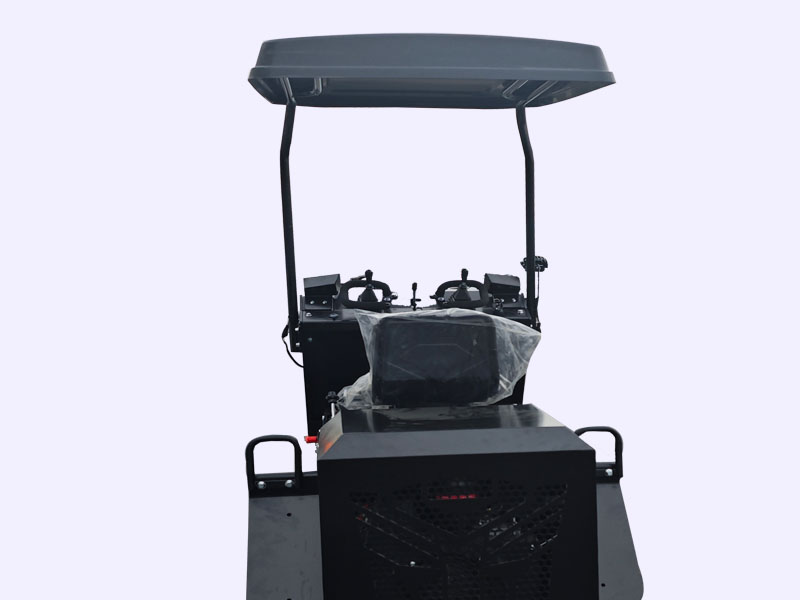

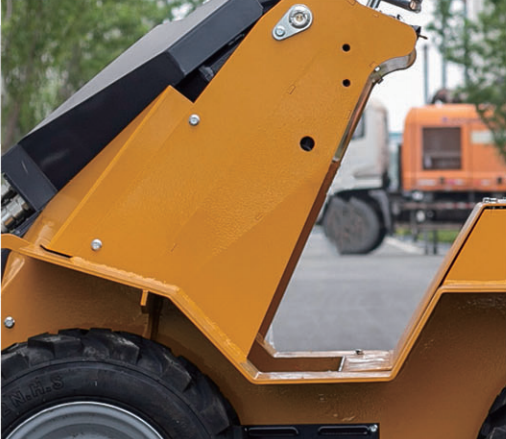

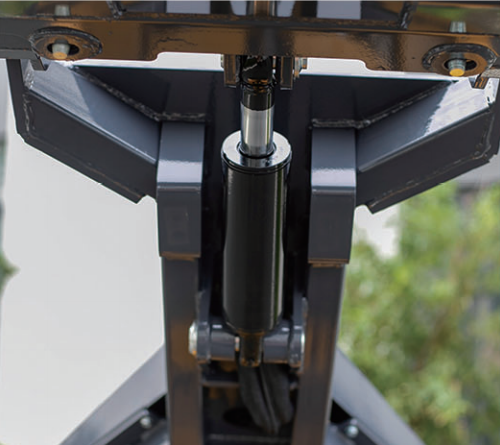

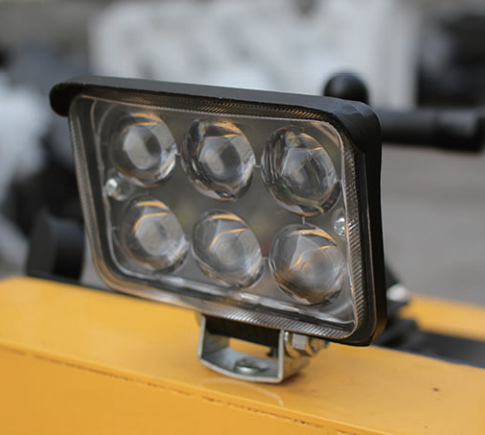

R490 Skid Steer Loader
The Xinfa R490 skid steer loader is built to be the dependable backbone of your fleet. Offering excellent stability, serviceability, and uptime for construction and aggregate businesses. Reduce your cost per hour. Download the maintenance guide.
