Description
The Xinfa X55 Wheeled Skid Steer Loader combines superior maneuverability, robust power, and exceptional versatility for a wide range of construction, agricultural, and material-handling tasks. Designed to deliver outstanding traction and speed on hard surfaces like concrete, asphalt, and packed soil, the X55 is the ideal choice for job sites where efficiency and agility are paramount.
Powered by a reliable high-performance engine and built on a durable chassis, the X55 offers strong lift capacity and smooth hydraulic operation to handle demanding attachments such as buckets, pallet forks, augers, and trenchers. Its compact yet powerful design allows it to operate effectively in confined spaces like warehouses, barns, and urban job sites, while still tackling heavy-duty loading and grading work.
The operator-centric comfort cab features intuitive controls, excellent visibility, and reduced noise levels for enhanced productivity during long shifts. With universal quick-attach compatibility, switching between tools is fast and seamless, maximizing uptime and adaptability across different applications.
For contractors, farmers, and landscape professionals who need a nimble, powerful, and cost-effective wheeled loader that excels on solid ground and boosts on-site efficiency, the Xinfa X55 is the smart, reliable partner for getting more work done every day.
Specification
| Model | X55 | Engine Brand | Cummins HFC4DA1-2C3 |
| Rated Power | 36.8 kW | Cylinder | 4 |
| Intake Type | Naturally Aspirated | Emission Standard | Euro 3 |
| Rated Load | 890 kg | Maximum Load | >1780 kg |
| Maximum Digging Force | >25 kN | Bucket Capacity | 0.4 m³ |
| Travel Speed | 0 – 12 km/h | Hydraulic Flow | 55 L/min |
| Height to Bucket Pin | 3020 mm | Cab Roof Height | 2095 mm ±5% |
| Bucket Horizontal Length at Ground | 3450 mm ±5% | Bucket Pin Horizontal Length | 2700 mm ±5% |
| Max Horizontal Distance at Bucket Bottom | 2846 mm ±5% | Maximum Dump Height | 2384 mm ±5% |
| Dump Reach | 520 mm ±1% | Bucket Dump Angle at Ground | 27° ±2° |
| Bucket Dump Angle at Maximum Height | 43° ±2° | Wheel Track | 1370 mm |
| Ground Clearance | 185 mm ±2% | Rear Overhang | 1160 mm ±5% |
| Vehicle Width | 1640 mm ±2% | Bucket Width | 1800 mm ±2% |
| Hydraulic System Pressure | 21 MPa | Fuel Tank Capacity | 80 L |
| Operating Weight | 2800 kg ±3% | Tire Size | 10-10.5 in |
| Model | X55 | Engine Brand | Cummins HFC4DA1-2C3 |
Production details
Powerful Cummins Engine
Equipped with a Cummins four-cylinder water-cooled engine, delivering strong, reliable power for consistent performance across demanding work environments.

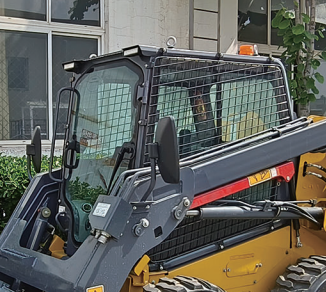

Safe and Comfortable Standard Cab
Designed with a standard cab for enhanced safety, dustproofing, and noise reduction. Provides a comfortable and secure working environment for operators.
Enhanced Visibility with Rearview Mirrors
Equipped with rearview mirrors to improve operational safety and accuracy, ensuring better control and awareness on the job site.

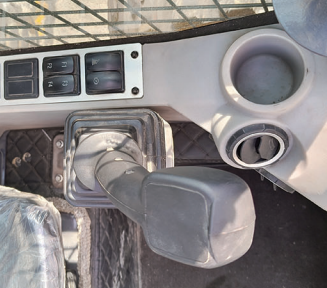

Intuitive Central Control System
The minimalist central control system is user-friendly and easy to operate. Operators can quickly master the controls, improving efficiency and precision during operation.
Smooth Hydraulic Pilot Control
Features hydraulic pilot control for smooth, flexible, and efficient operation, allowing precise handling and better control of attachments.
Reinforced Adjustable Bulldozer Blade
Equipped with a reinforced bulldozer blade with adjustable height, enabling efficient filling, leveling, and material handling for diverse construction tasks.
Attachment for option
Skid Steer Loader Attachments Showcasen
Explore our versatile range of skid steer loader attachments designed to boost efficiency and tackle any job. From buckets and forks to hydraulic breakers and grapples, find the perfect attachment for construction, landscaping, agriculture, and more. Durable, high-performance tools that make your skid steer loader work smarter.
u00a0
About our brand
Xinfa is a professional manufacturer specializing in skid steer loaders, offering reliable, high-performance machines designed for construction, landscaping, agriculture, and industrial applications. With many years of industry experience, we focus on innovation, durability, and user-friendly design. Our products are trusted by customers worldwide, and we provide global shipping to ensure fast and convenient delivery to every market. At Xinfa, we are committed to delivering quality equipment that enhances productivity and supports your business success.
Contact us
Frequently Asked Questions
Do you offer global shipping?
Yes, we ship our skid steer loaders and attachments worldwide. We work with reliable logistics partners to ensure timely and safe delivery to your destination.
What engine options are available?
Our machines can be equipped with several engine options, including Yanmar and other well-known brands, depending on the model and customer preference.
How long is the production lead time?
Normally, production takes 15u201325 days after receiving the deposit. For stocked models, we can arrange faster delivery.
Can I customize the machine?
Yes. We offer customization options such as colors, attachments, engine types, hydraulic systems, and OEM branding to meet your market requirements.
What warranty do you provide?
We offer a 12-month warranty for the whole machine and long-term technical support. Spare parts are available for all models.
Do you provide after-sales service and technical support?
Absolutely. We provide online technical guidance, parts support, operation manuals, and video assistance to help you solve any issues quickly.
