Skid Steer Loader Parts: Complete Anatomy Guide

Knowing your skid steer loader parts is the fastest way to buy smarter, operate safer, and budget maintenance correctly. These compact machines pack a hydraulic power plant, a chassis, a lift system, and an attachment interface into a frame small enough to fit through a standard doorway. This guide walks through every major component of a skid steer loader, what it does, and which parts wear out fastest.

Core Chassis and Powertrain

The chassis is the spine of every skid steer loader. It carries the engine, hydraulic pump, fuel tank, operator station, and lift arms. Unlike a conventional front-end loader, a skid steer has no steering wheel — the left and right wheels are driven independently, which is how the machine “skids” in place. Understanding these core skid steer loader parts helps you diagnose problems fast and avoid overpaying for service.

Engine or Electric Motor

The power source sits low in the rear of the machine. Diesel models range from around 7.5 kW on entry compact units up to 18.4 kW on larger frames. Modern electric models swap the diesel engine for a battery pack and drive motor — for example, the Xinfa X360 offers a 6 kW (72V 125Ah) electric option alongside 7.5 / 8.6 / 9.9 kW diesel variants. The electric version removes the fuel tank, exhaust, and radiator, which changes the service checklist entirely. These are among the heaviest skid steer loader parts to replace, so buying from a factory that stocks spares matters.

Hydraulic Pump and Fluid Reservoir

The hydraulic pump is the heart of the machine. It drives the lift arms, the bucket tilt, and the auxiliary circuits that power attachments. Most compact skid steers use a gear pump; larger machines use piston pumps for higher flow. Keep an eye on hydraulic oil condition — dirty fluid is the number one cause of pump failure. For a deeper dive, read our guide on skid steer hydraulic system care.

Drive Motors and Wheels

Two hydraulic drive motors — one for the left side, one for the right — power the wheels (or tracks). Speeding one side up and slowing the other turns the machine. Because tires drag sideways during every turn, they wear faster than on normal vehicles. Check our skid steer tire care guide to maximize tread life.

Lift Arms, Operator Station and Attachment Interface

Lift Arms and Linkage

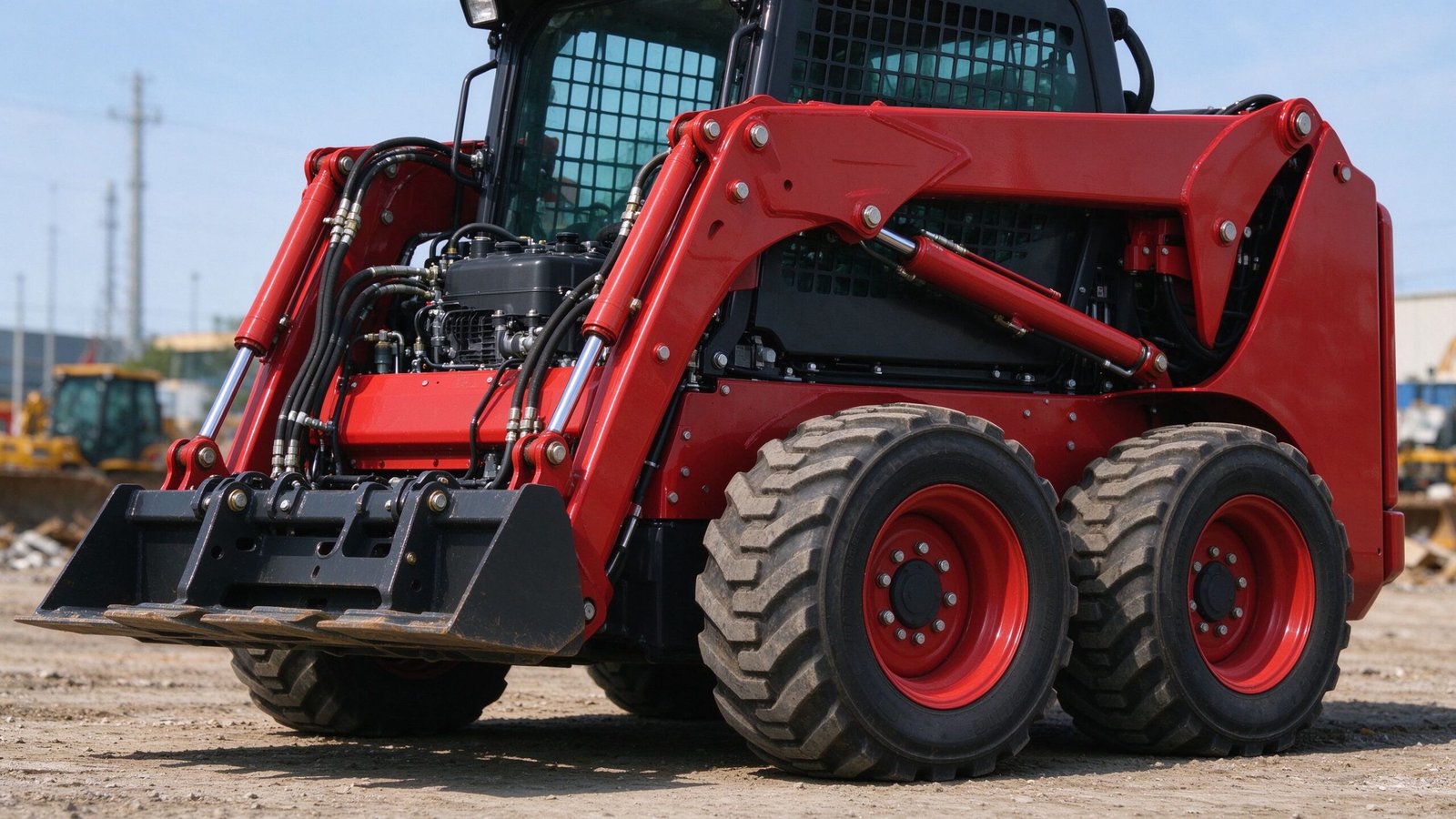

The lift arms are the most visible of all skid steer loader parts. They come in two geometries: radial lift arms arc outward as they rise, which suits digging and low lifting; vertical lift arms rise nearly straight up, which suits truck loading and pallet stacking. Hydraulic cylinders on each side raise and lower the arms. A tilt cylinder at the top of the linkage rolls the bucket or attachment forward and back. Pivot pins and bushings here take enormous load — they should be greased at every service interval.

ROPS, FOPS and Controls

The Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) are welded steel cages built to survive a tip-over. Never operate a skid steer with the ROPS damaged or removed. Xinfa machines ship with CE, EPA, EURO5 and ISO-certified cabins meeting international safety standards for operator protective structures. Inside the cabin, mechanical or electro-hydraulic joysticks control drive, lift, and tilt. The seat bar must be down before the hydraulics engage — a safety interlock that prevents accidental movement. These cabin and control skid steer loader parts are non-negotiable for safe operation.

Quick Coupler and Auxiliary Hydraulics

The quick-attach plate is what makes a skid steer versatile. A flat steel plate with two locking levers lets the operator swap buckets, augers, grapples, and forks in under a minute. Auxiliary hydraulic lines (usually flat-face couplers) supply oil to powered attachments like augers and grapples. If you are new to the platform, start with our skid steer attachments guide.

Undercarriage, Wear Parts and Maintenance

Wheeled skid steers use heavy-duty pneumatic, foam-filled, or solid tires. Tracked variants substitute a rubber-track undercarriage with rollers and idlers. Body panels are typically bolted steel that hinges open for daily checks of oil, coolant, and battery. Wear items include cutting edges on the bucket, cylinder seals, and drive chains on compact stand-on units.

Across a typical 1,000-hour service life, expect to replace engine and hydraulic oil filters every 250–500 hours, tires or track rubber, the bucket cutting edge, hydraulic hose fittings on high-vibration areas, and pivot pins on the lift arms. For a full schedule, see our skid steer maintenance tips checklist. If you want to understand how these skid steer loader parts work together, read how a skid steer loader works.

Which Skid Steer Loader Parts Fail First?

Tires, bucket cutting edges, and hydraulic hoses wear fastest. Pivot pins on the lift arms and cylinder seals are next. Engine or motor failure is rare on well-maintained compact machines — most downtime comes from wear items, not major breakdowns. Knowing which skid steer loader parts to keep in stock saves hours when a fitting fails on a Friday afternoon.

Can I Buy Spare Parts Direct From the Factory?

Yes. When you buy factory-direct from Xinfa, spare parts, seals, filters, and wear plates are stocked for export. Always confirm parts availability before importing a machine from an unfamiliar brand.

Choose Xinfa for Reliable, Well-Built Parts Access

Every component matters — but the easiest way to keep skid steer loader parts working is to start with a machine built from quality components and backed by a factory that supports it. Shandong Xinfa Machinery Co., Ltd. designs and builds compact skid steers such as the X360, X390, X460, R480, R490 and R750, with spare parts stocked for export markets worldwide. If you are comparing machines, learn how rated operating capacity affects real-world productivity, or browse the full range on the Xinfa website. Xinfa skid steer loader parts, manuals, and direct factory support are available on request.
